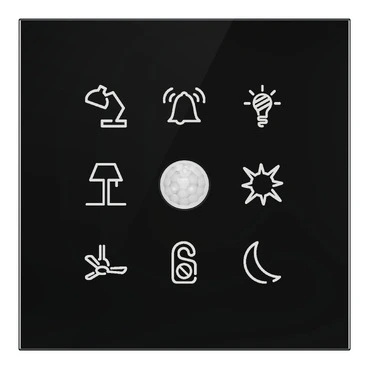

Modbus Glass Touch Panel – 8 Button + PIR

Modbus Glass Touch Panel – 8 Button + PIR

Item Number: SLGM08BUM

The Modbus Glass Touch Panel – 8 Button + PIR (Part No. SLGM08BUM) is a premium smart control solution designed for modern automation systems

The Modbus Glass Touch Panel – 8 Button + PIR (Part No. SLGM08BUM) is a premium smart control solution designed for modern automation systems. With its sleek glass finish, customizable RGB backlit buttons, and integrated PIR motion detection, it offers both functionality and elegance. Engineered with Modbus RTU over RS-485, it ensures reliable communication, making it ideal for lighting, HVAC, and smart building applications.

Datasheet

For SLGM08BUM
201.31 Kb PDF

Specifications

Design
Product or component typeSmart Touch Panel
Device applicationControl & Automation
Button configurationUp to 8 buttons
Communication protocolModbus RTU over RS-485
Power supply24 V DC
Current consumption≤ 30 mA
Operating temperature0 to 45 °C (32 to 113 °F)
Operating humidity10 to 90% RH, non-condensing
Storage temperature-40 to 70 °C (-40 to 158 °F)
Proximity sensor range15 ± 5 cm (5.9 ± 2.0 in)
PIR motion detection5 m, 110° (Horizontal) / 2 m, 80° (Vertical) @ 23 °C
Backlight colorsRGB LED configurable (256 colors)
CertificationsCE, RoHS, REACH
IP ratingIP20 (EN 60529)
Safety classClass II (EN 61140)
MountingSnap-in magnetic clips with mounting plate
Wall box compatibilityBS or CE60, ≥35 mm depth
Mounting screw spacing60.15 mm (2.37 in)
Physical
Height95 mm (3.74 in)
Width95 mm (3.74 in)
Depth31.9 mm (1.26 in) including base
Weight201 g (0.44 lb)
Material
Front surfaceGlass (Black, White, Champagne Gold, Silver)
Flush-mounted partPC+ABS (White for white glass, Black for other finishes)
Mounting plateMetal (Black)
