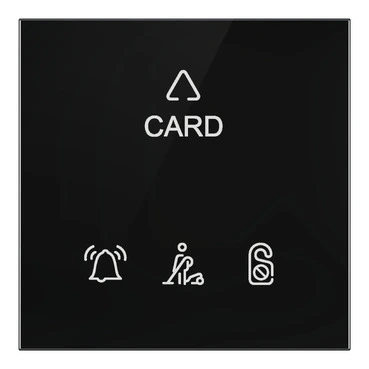

The Modbus Glass Door Keycard Panel – 3 Button is a modern, stylish, and durable solution designed for access control and smart building automation. With its elegant glass front surface and customizable RGB backlit buttons, it enhances both functionality and aesthetics in hotels, offices, and residential spaces. The panel supports Modbus RTU over RS-485 communication, ensuring seamless integration with building management systems. Its keycard holder functionality provides a secure and convenient way to activate or deactivate room functions, while the configurable 3-button setup offers flexibility for user-specific applications.
Built with premium materials, multiple color options, and advanced proximity sensing technology, this panel combines performance, safety, and design excellence.
Datasheet
For SLGM03KH
198.46 Kb PDF
Specifications
Design
| Product or component type | Modbus Glass Door Keycard Panel |
| | Device application | Access Control & Room Management |
| | Button configuration | Up to 3 Buttons |
|
| Communication protocol | Modbus RTU over RS-485 |
| | | Current consumption | ≤ 30 mA |
|
| Operating temperature | 0 to 45 °C (32 to 113 °F) |
| | Operating humidity | 10 to 90% RH, non-condensing |
| | Storage temperature | -40 to 70 °C (-40 to 158 °F) |
|
| Proximity sensor range | 15 ± 5 cm (5.9 ± 2.0 in) |
| | Backlight colors | RGB LED configurable (256 colors) |
| | Certifications | CE, RoHS, REACH |
|
| | Safety class | Class II (EN 61140) |
| | Mounting | Snap-in magnetic clips with mounting plate |
|
| Wall box compatibility | BS or CE60, ≥35 mm depth |
| | Mounting screw spacing | 60.15 mm (2.37 in) |
|
Physical
| | | Depth | 35.8 mm (1.41 in) including base |
|
|
Material
| Front surface | Glass (Black, White, Champagne Gold, Silver) |
| | Flush-mounted part | PC+ABS (White for white glass, Black for other finishes) |
| | Mounting plate | Metal (Black) |
|
