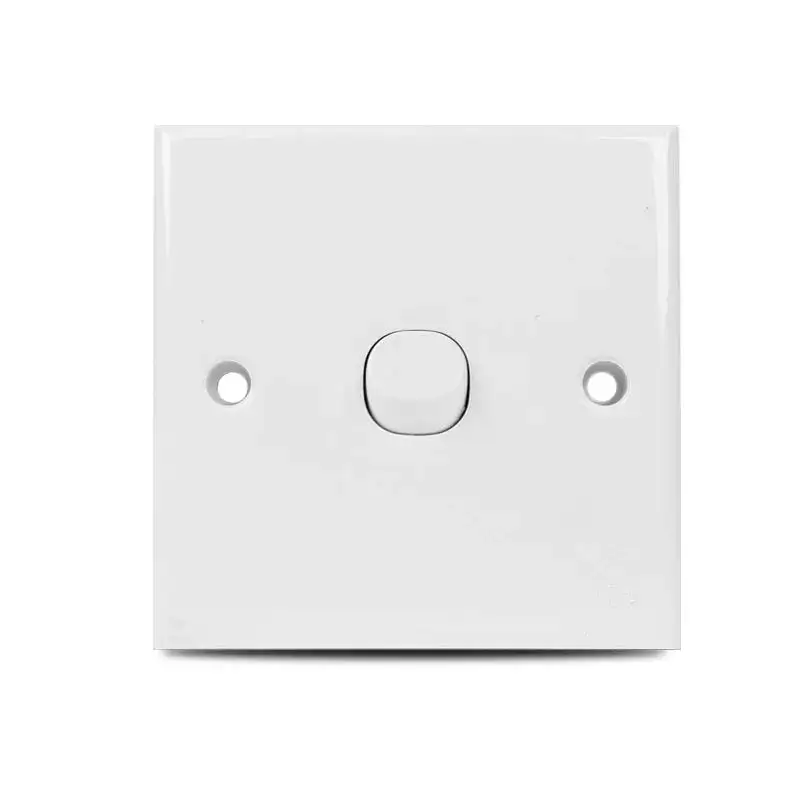

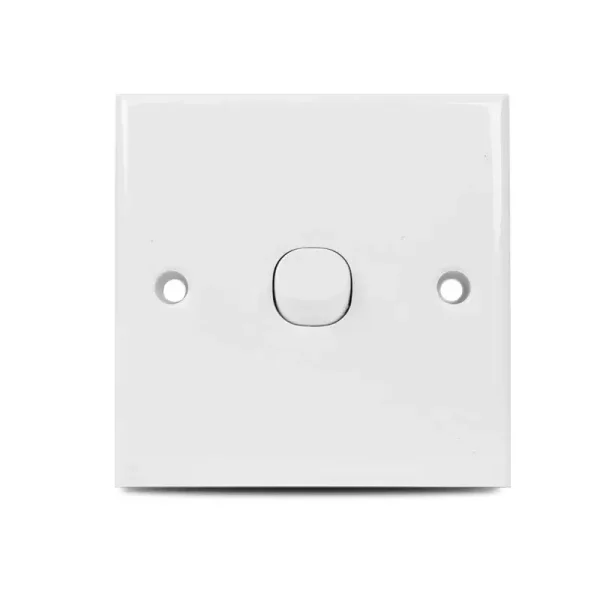

The Switch S-Classic 250V 10AX is a versatile 1-way lighting switch from the S-Classic range, designed for surface or flush mounting. It features a single gang rocker actuator, measuring 87 mm in height and width, with a depth of 29.1 mm. The switch is made of durable polycarbonate materials and complies with standards SS 227-1, GB 16915.1, BS EN 60669-1, IEC 60669-1, and MS IEC 60669-1. Suitable for a range of environments, it operates at temperatures from -5 to 40°C and humidity levels from 0-95%. Part Number: E31/1/2A.
Specifications
Design
| | Product or component type | switch |
| | Switch Application | lighting |
|
| | |
| Rated current | 10 AX at 250 V AC |
| | |
| | | Range of product | S-Classic |
|
| Device application | control |
| | Device mounting | surface, flush |
| | Standards | SS 227-1, GB 16915.1, BS EN 60669-1, IEC 60669-1, MS IEC 60669-1 |
|
| | Ambient air temperature for operation | -5-40 °C |
| |
Physical
Material
| Material | plate: PC (polycarbonate), white, dolly: PC (polycarbonate), white, base: PA66, black |
| | |
